Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender

Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender

Advantages

► Supports HDMI2.0 Video up to 4K/60Hz (Y:U:V 4:4:4)

► No Settings or Adjustments Necessary

► Adopt WDM technology to realize high-definition

audio and video transmission through a single OM4 multi-mode optical fiber

► Supports up to 300m Transmission Distance with OM4 multimode fiber

► Standard HDMI2.0 Connector

► Integrated USB Connector for Power

► Hot-Pluggable

► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference

performance

► Uses Small, Reliable LC Optical Connector

► Support EDID, HDCP, CEC transparent transmis

Overview

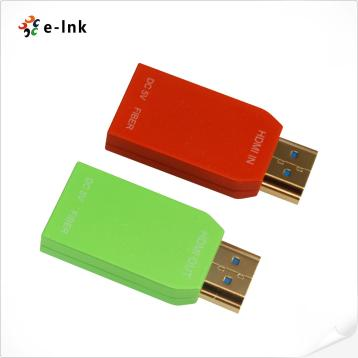

The LNK-109M is a mini 4K/60Hz HDMI2.0 over Single-Core MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.

The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 2.0 signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K@60Hz. LNK-109M-T converts an HDMI signal to a single 18Gb/s serial data stream for transmission over single optical fibers. LNK-109M-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Technical Indexes

Order Information

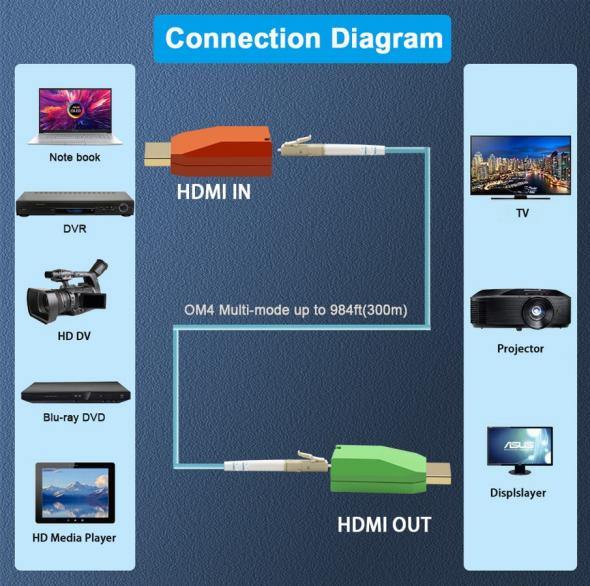

Application

4K 60Hz HDMI Fiber Extender

Multimode HDMI Fiber Extender

Single-Core HDMI Fiber Extender

Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender Images
